Digital Matter Oyster Edge on TrackeraX

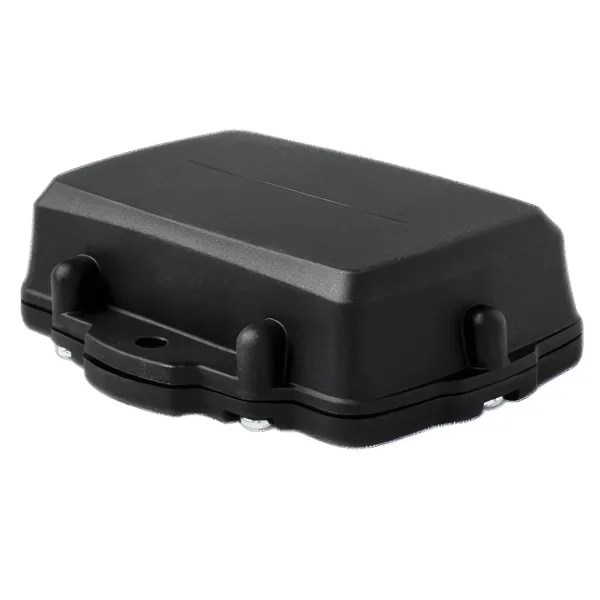

The Digital Matter Oyster Edge is a GPS tracker. In TrackeraX it connects over the dmt protocol on port 6137 and accepts 1 command from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6137 (dmt protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Digital Matter Oyster Edge model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Custom commandcustom
[ Data reported by the dmt protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltagebattery
- Device temperaturedeviceTemp
- Driver ID (RFID / iButton)driverUniqueId
- Engine hourshours
- Ignitionignition
- Digital inputsinput
- Odometerodometer
- Digital outputsoutput
- PDOPpdop
- External powerpower
- GSM signalrssi
- Trip odometertripOdometer
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- IO elements (io1, io2…)
[ Alarms the protocol can report ]
- Accidentaccident
- Geofence entrygeofenceEnter
- Geofence exitgeofenceExit
- Harsh accelerationhardAcceleration
- Harsh brakinghardBraking
- Harsh corneringhardCornering
- Low batterylowBattery
- Overspeedoverspeed
- Tamperingtampering
- Towingtow
[ Protocol-specific attributes ]
solarPower · tripHours
[ Other Digital Matter models ]
Digital Matter Oyster Edge FAQ
Which port does the Digital Matter Oyster Edge use to connect to TrackeraX?
The Digital Matter Oyster Edge uses the dmt protocol and connects to port 6137 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Digital Matter Oyster Edge send to the platform?
TrackeraX reads 14 parameters of the dmt protocol on this device, for example: Battery voltage, Device temperature, Driver ID (RFID / iButton), Engine hours, Ignition. Each one can become a sensor or an alert.
Which alarms does the Digital Matter Oyster Edge report?
TrackeraX recognizes these dmt alarms: Accident, Geofence entry, Geofence exit, Harsh acceleration, Harsh braking. Any of them can become an email, push or webhook notification.
How do I add the Digital Matter Oyster Edge to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6137 and create it in TrackeraX with its IMEI, choosing the Digital Matter Oyster Edge model.
Try the Oyster Edge on your own platform
Open the live demo or check the plans: white label, your domain, your apps.
