[ GPS device ]

iStartek VT300-L on TrackeraX

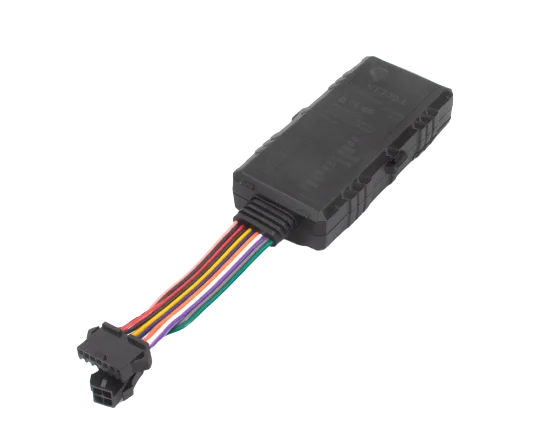

The iStartek VT300-L is a GPS tracker that works with TrackeraX over the trv protocol on port 6010. From the platform it accepts custom commands. The server decodes 2 alarm types from this protocol, such as fall and sos.

[ How to connect it to TrackeraX ]

  1. Insert a SIM card with mobile data and set the APN of your carrier on the device.
  2. Set the server to the domain of your TrackeraX platform and the port 6010 (trv protocol).
  3. Create the device in TrackeraX with its IMEI or identifier and choose the iStartek VT300-L model.
  4. Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

[ Commands you can send from TrackeraX ]

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

  • Custom commandcustom

[ Data reported by the trv protocol ]

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

  • Armedarmed
  • Battery voltagebattery
  • Battery levelbatteryLevel
  • Blockedblocked
  • Chargingcharge
  • Heart rateheartRate
  • Ignitionignition
  • Motionmotion
  • GSM signalrssi
  • Satellitessat
  • Stepssteps

[ Alarms the protocol can report ]

  • FallfallDown
  • SOSsos

[ Protocol-specific attributes ]

bloodSugar · mode · pressureDiastolic · pressureSystolic · spo2 · temperature

[ Other Istartek models ]

[ Other devices on the trv protocol ]

iStartek VT300-L FAQ

Which port does the iStartek VT300-L use to connect to TrackeraX?

The iStartek VT300-L uses the trv protocol and connects to port 6010 on your TrackeraX server. Just set your platform domain and that port on the device.

What data does the iStartek VT300-L send to the platform?

TrackeraX reads 11 parameters of the trv protocol on this device, for example: Armed, Battery voltage, Battery level, Blocked, Charging. Each one can become a sensor or an alert.

Which alarms does the iStartek VT300-L report?

TrackeraX recognizes these trv alarms: Fall, SOS. Any of them can become an email, push or webhook notification.

How do I add the iStartek VT300-L to my platform?

Insert a data SIM, set the APN, point the device to your platform domain on port 6010 and create it in TrackeraX with its IMEI, choosing the iStartek VT300-L model.
