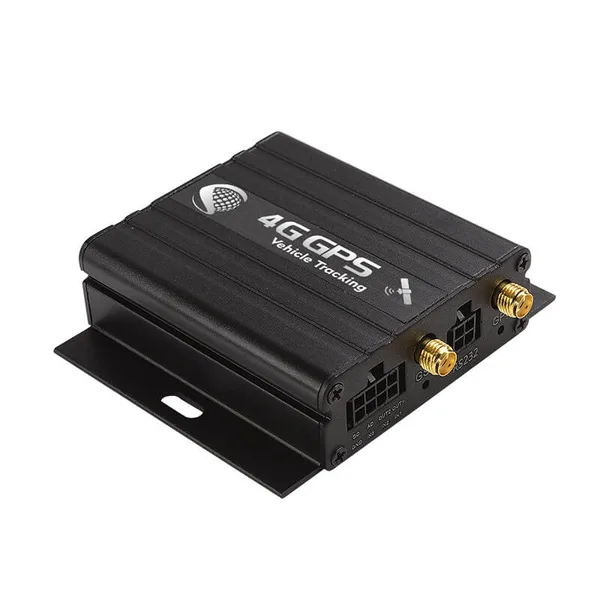

Istartek VT900-L on TrackeraX
The Istartek VT900-L is a vehicle tracker with 4G LTE. It comes with an internal battery and an RS-232 port. In TrackeraX it connects over the startek protocol on port 6222 and accepts 4 commands from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6222 (startek protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Istartek VT900-L model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Hardware and connectivity ]
- Internal battery
- 4G LTE
- RS-232
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Engine stopengineStop
- Engine resumeengineResume
- Output controloutputControl
- Custom commandcustom
[ Data reported by the startek protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltagebattery
- Chargingcharge
- Coolant temperaturecoolantTemp
- Doordoor
- Driver ID (RFID / iButton)driverUniqueId
- Engine loadengineLoad
- Fuelfuel
- Fuel consumptionfuelConsumption
- Fuel usedfuelUsed
- HDOPhdop
- Engine hourshours
- Ignitionignition
- Digital inputsinput
- Odometerodometer
- Digital outputsoutput
- External powerpower
- RPMrpm
- Satellitessat
- Throttlethrottle
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Inputs (in1, in2…)
- Outputs (out1, out2…)
- Temperature sensors (temp1, temp2…)
[ Alarms the protocol can report ]
- Doordoor
- Harsh accelerationhardAcceleration
- Harsh brakinghardBraking
- Harsh corneringhardCornering
- Low powerlowPower
- Power cutpowerCut
- Power restoredpowerRestored
- SOSsos
[ Protocol-specific attributes ]
airFlow · airPressure · airTemp · catalystLevel · oilPressure · oilTemp · torque
[ Other Istartek models ]
Istartek VT900-L FAQ
Which port does the Istartek VT900-L use to connect to TrackeraX?
The Istartek VT900-L uses the startek protocol and connects to port 6222 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Istartek VT900-L send to the platform?
TrackeraX reads 23 parameters of the startek protocol on this device, for example: Battery voltage, Charging, Coolant temperature, Door, Driver ID (RFID / iButton). Each one can become a sensor or an alert.
Can I send commands to the Istartek VT900-L from TrackeraX?
Yes. From the map or the device page you can send 3 command types to the Istartek VT900-L, including: Engine stop, Engine resume, Output control.
Which alarms does the Istartek VT900-L report?
TrackeraX recognizes these startek alarms: Door, Harsh acceleration, Harsh braking, Harsh cornering, Low power. Any of them can become an email, push or webhook notification.
How do I add the Istartek VT900-L to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6222 and create it in TrackeraX with its IMEI, choosing the Istartek VT900-L model.
