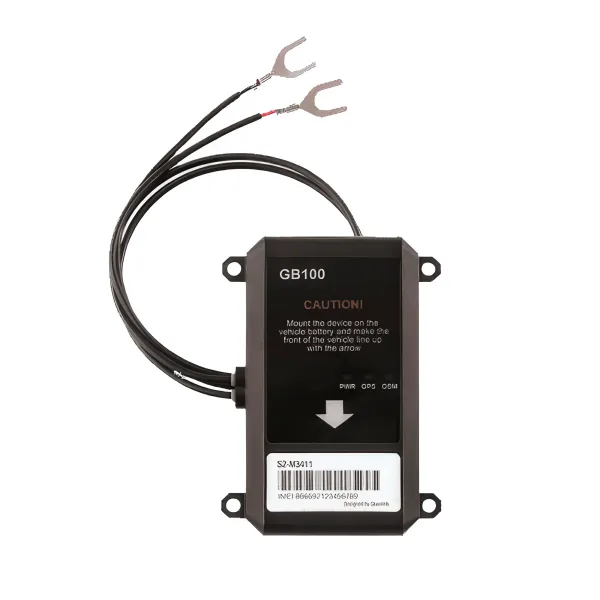

Queclink GB100 on TrackeraX
The Queclink GB100 is a vehicle tracker. In TrackeraX it connects over the gl200 protocol on port 6004 and accepts 6 commands from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6004 (gl200 protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Queclink GB100 model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Engine stopengineStop
- Engine resumeengineResume
- Request positionpositionSingle
- Reboot devicerebootDevice
- Device identificationdeviceIdentification
- Custom commandcustom
[ Data reported by the gl200 protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Axle weightaxleWeight
- Battery voltagebattery
- Battery levelbatteryLevel
- Chargingcharge
- Coolant temperaturecoolantTemp
- Device temperaturedeviceTemp
- Driver ID (RFID / iButton)driverUniqueId
- Driving timedrivingTime
- Fault codes (DTC)dtcs
- Fuelfuel
- Fuel consumptionfuelConsumption
- Fuel usedfuelUsed
- HDOPhdop
- Engine hourshours
- Humidityhumidity
- SIM ICCIDiccid
- Ignitionignition
- Digital inputsinput
- Motionmotion
- OBD odometerobdOdometer
- OBD speedobdSpeed
- Odometerodometer
- Digital outputsoutput
- External powerpower
- RPMrpm
- GSM signalrssi
- Satellitessat
- Throttlethrottle
- Firmware versionversionFw
- Hardware versionversionHw
- VINvin
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Inputs (in1, in2…)
- Outputs (out1, out2…)
- Temperature sensors (temp1, temp2…)
[ Alarms the protocol can report ]
- Fatigue drivingfatigueDriving
- Geofencegeofence
- Harsh accelerationhardAcceleration
- Harsh brakinghardBraking
- Harsh corneringhardCornering
- Idlingidle
- Jammingjamming
- Low batterylowBattery
- Movementmovement
- Overspeedoverspeed
- Power cutpowerCut
- Power offpowerOff
- Power onpowerOn
- Power restoredpowerRestored
- SOSsos
- Temperaturetemperature
- Towingtow
[ Protocol-specific attributes ]
acceleratorKickDownTime · acceleratorKickDowns · accessoryHumidity · accessoryMac · accessoryName · accessoryStatus · accessoryTemp · accessoryVoltage · adBlueLevel · axleWeight1 · axleWeight3 · axleWeight4 · brakeApplication · cruiseControlTime · data · deviceType · doors · driver1Card · driver1Name · driver2Card · driver2Name · dtcsClearedDistance · dtcsCodes · dtcsNumber · effectiveEngineSpeed · engineAllStarts · engineBreakingFactor · engineColdRunningTime · engineColdStarts · engineOverspeed · engineStartsByIgnition · engineTorque · expansionInformation · externalBattery · fatigueDegree · handbrakeApplies · idleFuelConsumption · idleHours · indicators · lightLevel and 15 more
[ Other Queclink models ]
Queclink GB100 FAQ
Which port does the Queclink GB100 use to connect to TrackeraX?
The Queclink GB100 uses the gl200 protocol and connects to port 6004 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Queclink GB100 send to the platform?
TrackeraX reads 35 parameters of the gl200 protocol on this device, for example: Axle weight, Battery voltage, Battery level, Charging, Coolant temperature. Each one can become a sensor or an alert.
Can I send commands to the Queclink GB100 from TrackeraX?
Yes. From the map or the device page you can send 5 command types to the Queclink GB100, including: Engine stop, Engine resume, Request position, Reboot device, Device identification.
Which alarms does the Queclink GB100 report?
TrackeraX recognizes these gl200 alarms: Fatigue driving, Geofence, Harsh acceleration, Harsh braking, Harsh cornering. Any of them can become an email, push or webhook notification.
How do I add the Queclink GB100 to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6004 and create it in TrackeraX with its IMEI, choosing the Queclink GB100 model.
