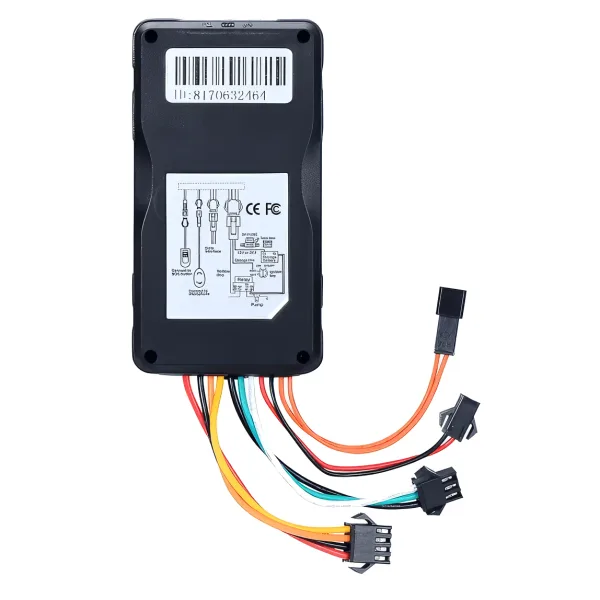

Sinotrack ST-906W on TrackeraX
The Sinotrack ST-906W is a GPS tracker. In TrackeraX it connects over the h02 protocol on port 6013 and accepts 6 commands from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6013 (h02 protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Sinotrack ST-906W model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Engine stopengineStop
- Engine resumeengineResume
- Arm alarmalarmArm
- Disarm alarmalarmDisarm
- Reporting intervalpositionPeriodic
- Custom commandcustom
[ Data reported by the h02 protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltagebattery
- Battery levelbatteryLevel
- Blockedblocked
- Doordoor
- Fuelfuel
- SIM ICCIDiccid
- Ignitionignition
- Odometerodometer
- GSM signalrssi
- Satellitessat
- Stepssteps
Numbered inputs and sensors
- IO elements (io1, io2…)
- Temperature sensors (temp1, temp2…)
[ Alarms the protocol can report ]
- Overspeedoverspeed
- Power cutpowerCut
- SOSsos
- Vibrationvibration
[ Protocol-specific attributes ]
engine · immobilizer · sentry · sleep · turnovers · wake
[ Other Sinotrack models ]
[ Other devices on the h02 protocol ]
Sinotrack ST-906W FAQ
Which port does the Sinotrack ST-906W use to connect to TrackeraX?
The Sinotrack ST-906W uses the h02 protocol and connects to port 6013 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Sinotrack ST-906W send to the platform?
TrackeraX reads 13 parameters of the h02 protocol on this device, for example: Battery voltage, Battery level, Blocked, Door, Fuel. Each one can become a sensor or an alert.
Can I send commands to the Sinotrack ST-906W from TrackeraX?
Yes. From the map or the device page you can send 5 command types to the Sinotrack ST-906W, including: Engine stop, Engine resume, Arm alarm, Disarm alarm, Reporting interval.
Which alarms does the Sinotrack ST-906W report?
TrackeraX recognizes these h02 alarms: Overspeed, Power cut, SOS, Vibration. Any of them can become an email, push or webhook notification.
How do I add the Sinotrack ST-906W to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6013 and create it in TrackeraX with its IMEI, choosing the Sinotrack ST-906W model.
