[ GPS device ]

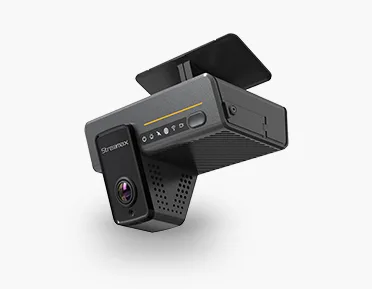

Streamax AD Plus 2.0 on TrackeraX

The Streamax AD Plus 2.0 is a video telematics device with 4G LTE. It comes with an RS-232 port. In TrackeraX it connects over the jt808 protocol on port 6015 and accepts 23 commands from the platform.

[ How to connect it to TrackeraX ]

  1. Insert a SIM card with mobile data and set the APN of your carrier on the device.
  2. Set the server to the domain of your TrackeraX platform and the port 6015 (jt808 protocol).
  3. Create the device in TrackeraX with its IMEI or identifier and choose the Streamax AD Plus 2.0 model.
  4. Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

[ Video and cameras ]

This model streams or records video. TrackeraX shows live video and playback from the web and the apps, using the jt808 video protocol.

[ Hardware and connectivity ]

  • 4G LTE
  • RS-232

[ Commands you can send from TrackeraX ]

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

  • Output controloutputControl
  • Engine stopengineStop
  • Engine resumeengineResume
  • Arm alarmalarmArm
  • Disarm alarmalarmDisarm
  • Dismiss alarmalarmDismiss
  • Reboot devicerebootDevice
  • Request positionpositionSingle
  • Reporting intervalpositionPeriodic
  • Stop reportingpositionStop
  • Text messagemessage
  • Voice messagevoiceMessage
  • Driver identificationgetDriver
  • Start live videovideoStart
  • Stop live videovideoStop
  • videoPropertiesvideoProperties
  • parameterQueryparameterQuery
  • mediaSearchmediaSearch
  • mediaUploadmediaUpload
  • ptzRotateptzRotate
  • ptzFocusptzFocus
  • ptzIrisptzIris
  • ptzWiperptzWiper
  • aiAdasaiAdas
  • aiDmsaiDms
  • aiTpmsaiTpms
  • aiBsdaiBsd
  • List recordingsvideoRecordingList
  • Download recordingvideoFileDownload
  • Play recordingvideoPlaybackStart
  • Playback controlvideoPlaybackControl
  • Alarm attachmentsalarmAttachments
  • Request photorequestPhoto
  • Custom commandcustom

[ Data reported by the jt808 protocol ]

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

  • Armedarmed
  • Audio fileaudio
  • Battery voltagebattery
  • Battery levelbatteryLevel
  • Blockedblocked
  • Cardcard
  • Chargingcharge
  • Coolant temperaturecoolantTemp
  • Device temperaturedeviceTemp
  • Doordoor
  • Driver ID (RFID / iButton)driverUniqueId
  • Fault codes (DTC)dtcs
  • Engine loadengineLoad
  • Fuelfuel
  • Fuel consumptionfuelConsumption
  • Fuel levelfuelLevel
  • Fuel usedfuelUsed
  • G-sensorgSensor
  • Geofencegeofence
  • HDOPhdop
  • Heart rateheartRate
  • Humidityhumidity
  • SIM ICCIDiccid
  • Ignitionignition
  • Photoimage
  • Digital inputsinput
  • Locklock
  • Motionmotion
  • OBD odometerobdOdometer
  • OBD speedobdSpeed
  • Odometerodometer
  • External powerpower
  • RPMrpm
  • GSM signalrssi
  • Satellitessat
  • Visible satellitessatVisible
  • Stepssteps
  • Throttlethrottle
  • Trip odometertripOdometer
  • Firmware versionversionFw
  • Video filevideo
  • VINvin

Numbered inputs and sensors

  • Analog inputs (adc1, adc2…)
  • IO elements (io1, io2…)
  • Temperature sensors (temp1, temp2…)

[ Alarms the protocol can report ]

  • Accidentaccident
  • Doordoor
  • Fatigue drivingfatigueDriving
  • Faultfault
  • Fuel leakfuelLeak
  • Geofencegeofence
  • Geofence entrygeofenceEnter
  • Geofence exitgeofenceExit
  • GPS antenna cutgpsAntennaCut
  • Harsh accelerationhardAcceleration
  • Harsh brakinghardBraking
  • Harsh corneringhardCornering
  • High RPMhighRpm
  • Idlingidle
  • Jammingjamming
  • Lane changelaneChange
  • Low batterylowBattery
  • Low powerlowPower
  • Movementmovement
  • Overspeedoverspeed
  • Parkingparking
  • Power cutpowerCut
  • Power offpowerOff
  • Power restoredpowerRestored
  • Removalremoving
  • SOSsos
  • Tamperingtampering
  • Temperaturetemperature
  • Towingtow
  • Vibrationvibration

[ Protocol-specific attributes ]

abnormalDrivingAlarm · abnormalDrivingDegree · adasAlarm · adasAlarmId · adasAlarmLevel · adasAlarmSerial · adasAlarmStatus · adasAlarmType · adasAltitude · adasDateTime · adasDeviationType · adasFrontDistance · adasFrontVehicleSpeed · adasLatitude · adasLongitude · adasRaw · adasRawLength · adasRoadSignData · adasRoadSignType · adasSpeed · adasVehicleStatus · airPressure · airTemp · alarmAreaEntering · alarmAreaId · alarmAreaType · alarmAttachments · alarmIdentifier · alarmJimi · alarmMask · alarmPhotoSaveFlag · alarmPhotoSwitch · alarmSerial · alarmSmsSwitch · alarmSupplement · alarmTerminalId · alarmThresholdType · alcohol · answerPolicy · apn and 179 more

[ Other Streamax models ]

[ Other devices on the jt808 protocol ]

Streamax AD Plus 2.0 FAQ

Which port does the Streamax AD Plus 2.0 use to connect to TrackeraX?

The Streamax AD Plus 2.0 uses the jt808 protocol and connects to port 6015 on your TrackeraX server. Just set your platform domain and that port on the device.

What data does the Streamax AD Plus 2.0 send to the platform?

TrackeraX reads 45 parameters of the jt808 protocol on this device, for example: Armed, Audio file, Battery voltage, Battery level, Blocked. Each one can become a sensor or an alert.

Can I send commands to the Streamax AD Plus 2.0 from TrackeraX?

Yes. From the map or the device page you can send 33 command types to the Streamax AD Plus 2.0, including: Output control, Engine stop, Engine resume, Arm alarm, Disarm alarm.

Which alarms does the Streamax AD Plus 2.0 report?

TrackeraX recognizes these jt808 alarms: Accident, Door, Fatigue driving, Fault, Fuel leak. Any of them can become an email, push or webhook notification.

Does the Streamax AD Plus 2.0 stream video?

Yes. The Streamax AD Plus 2.0 is a video device and TrackeraX integrates it with the jt808 protocol: live video and recordings next to the map.

How do I add the Streamax AD Plus 2.0 to my platform?

Insert a data SIM, set the APN, point the device to your platform domain on port 6015 and create it in TrackeraX with its IMEI, choosing the Streamax AD Plus 2.0 model.
