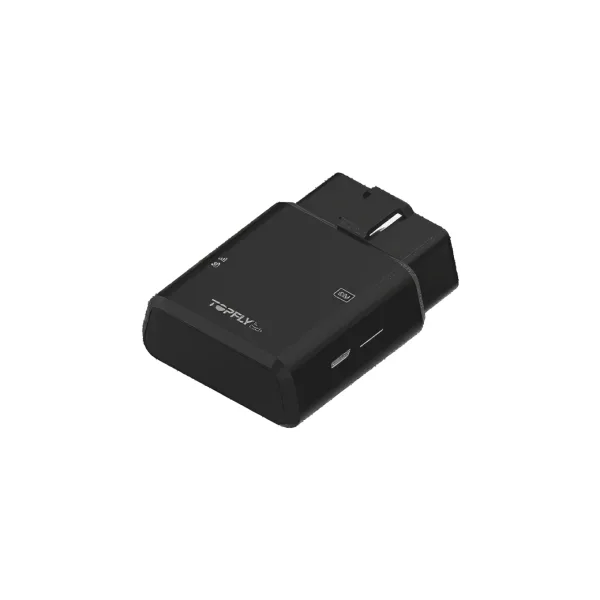

Topflytech TLD2-L on TrackeraX
The Topflytech TLD2-L is a GPS tracker with Bluetooth Low Energy. In TrackeraX it connects over the t800x protocol on port 6094 and accepts 1 command from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6094 (t800x protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Topflytech TLD2-L model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Hardware and connectivity ]
- Bluetooth
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Custom commandcustom
[ Data reported by the t800x protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltagebattery
- Battery levelbatteryLevel
- Coolant temperaturecoolantTemp
- Device temperaturedeviceTemp
- Driver ID (RFID / iButton)driverUniqueId
- Engine loadengineLoad
- Fuelfuel
- Fuel consumptionfuelConsumption
- Fuel levelfuelLevel
- Fuel usedfuelUsed
- G-sensorgSensor
- SIM ICCIDiccid
- Ignitionignition
- Digital inputsinput
- Odometerodometer
- Mobile operatoroperator
- Digital outputsoutput
- External powerpower
- RPMrpm
- GSM signalrssi
- Satellitessat
- Throttlethrottle
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Inputs (in1, in2…)
- Outputs (out1, out2…)
[ Alarms the protocol can report ]
- FallfallDown
- Geofence entrygeofenceEnter
- Geofence exitgeofenceExit
- Harsh accelerationhardAcceleration
- Harsh brakinghardBraking
- Harsh corneringhardCornering
- Jammingjamming
- Low batterylowBattery
- Low powerlowPower
- Overspeedoverspeed
- Power cutpowerCut
- Power restoredpowerRestored
- Removalremoving
- SOSsos
- Tamperingtampering
- Towingtow
- Vibrationvibration
[ Protocol-specific attributes ]
ac · airInput · airPressure · airTemp · alarmCode · lightSensor · networkBand · networkTechnology · solarPanel · tag
[ Other Topflytech models ]
Topflytech TLD2-L FAQ
Which port does the Topflytech TLD2-L use to connect to TrackeraX?
The Topflytech TLD2-L uses the t800x protocol and connects to port 6094 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Topflytech TLD2-L send to the platform?
TrackeraX reads 25 parameters of the t800x protocol on this device, for example: Battery voltage, Battery level, Coolant temperature, Device temperature, Driver ID (RFID / iButton). Each one can become a sensor or an alert.
Which alarms does the Topflytech TLD2-L report?
TrackeraX recognizes these t800x alarms: Fall, Geofence entry, Geofence exit, Harsh acceleration, Harsh braking. Any of them can become an email, push or webhook notification.
How do I add the Topflytech TLD2-L to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6094 and create it in TrackeraX with its IMEI, choosing the Topflytech TLD2-L model.
