[ GPS device ]

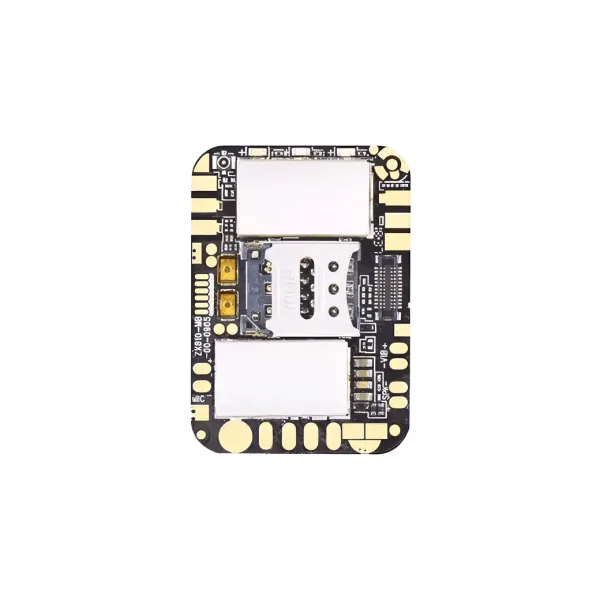

Topin ZX810 on TrackeraX

The Topin ZX810 is a GPS tracker that works with TrackeraX over the topin protocol on port 6199. From the platform it supports sos number, plus custom commands. The server decodes 4 alarm types from this protocol, such as low power, overspeed and sos.

[ How to connect it to TrackeraX ]

  1. Insert a SIM card with mobile data and set the APN of your carrier on the device.
  2. Set the server to the domain of your TrackeraX platform and the port 6199 (topin protocol).
  3. Create the device in TrackeraX with its IMEI or identifier and choose the Topin ZX810 model.
  4. Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

[ Commands you can send from TrackeraX ]

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

  • SOS numbersosNumber
  • Custom commandcustom

[ Data reported by the topin protocol ]

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

  • Battery levelbatteryLevel
  • Chargingcharge
  • Heart rateheartRate
  • GSM signalrssi
  • Satellitessat
  • Firmware versionversionFw

[ Alarms the protocol can report ]

  • Low powerlowPower
  • Overspeedoverspeed
  • SOSsos
  • Vibrationvibration

[ Other Topin models ]

Topin ZX810 FAQ

Which port does the Topin ZX810 use to connect to TrackeraX?

The Topin ZX810 uses the topin protocol and connects to port 6199 on your TrackeraX server. Just set your platform domain and that port on the device.

What data does the Topin ZX810 send to the platform?

TrackeraX reads 6 parameters of the topin protocol on this device, for example: Battery level, Charging, Heart rate, GSM signal, Satellites. Each one can become a sensor or an alert.

Can I send commands to the Topin ZX810 from TrackeraX?

Yes. From the map or the device page you can send 1 command types to the Topin ZX810, including: SOS number.

Which alarms does the Topin ZX810 report?

TrackeraX recognizes these topin alarms: Low power, Overspeed, SOS, Vibration. Any of them can become an email, push or webhook notification.

How do I add the Topin ZX810 to my platform?

Insert a data SIM, set the APN, point the device to your platform domain on port 6199 and create it in TrackeraX with its IMEI, choosing the Topin ZX810 model.
