Galileosky 10 C on TrackeraX

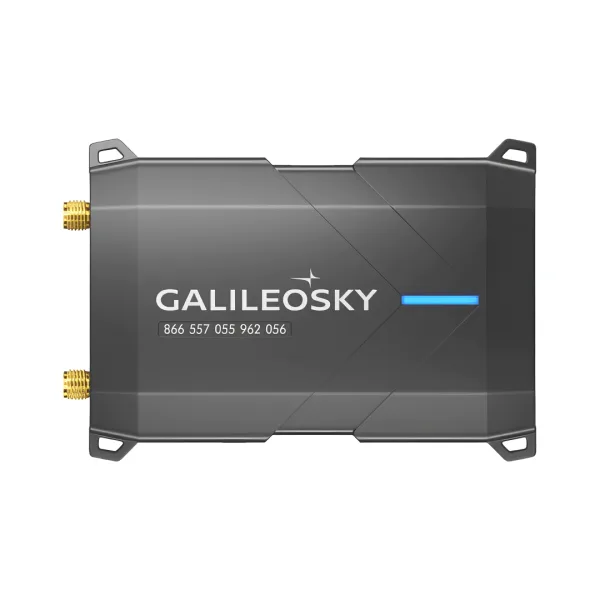

The Galileosky 10 C is a GPS tracker with Bluetooth Low Energy. In TrackeraX it connects over the galileo protocol on port 6034 and accepts 2 commands from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6034 (galileo protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Galileosky 10 C model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Hardware and connectivity ]
- Bluetooth
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Output controloutputControl
- Custom commandcustom
[ Data reported by the galileo protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Accelerationacceleration
- Battery voltagebattery
- Device temperaturedeviceTemp
- Driver ID (RFID / iButton)driverUniqueId
- Fuelfuel
- HDOPhdop
- Photoimage
- Digital inputsinput
- Odometerodometer
- Digital outputsoutput
- External powerpower
- RPMrpm
- Firmware versionversionFw
- Hardware versionversionHw
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Temperature sensors (temp1, temp2…)
[ Protocol-specific attributes ]
can16BitR · can32BitR · can8BitR · canB0 · canB1 · deviceId · fuelTotal · rs2320 · rs2321 · statusExtended · userData · userDataArray
[ Other Galileosky models ]
Galileosky 10 C FAQ
Which port does the Galileosky 10 C use to connect to TrackeraX?
The Galileosky 10 C uses the galileo protocol and connects to port 6034 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Galileosky 10 C send to the platform?
TrackeraX reads 16 parameters of the galileo protocol on this device, for example: Acceleration, Battery voltage, Device temperature, Driver ID (RFID / iButton), Fuel. Each one can become a sensor or an alert.
Can I send commands to the Galileosky 10 C from TrackeraX?
Yes. From the map or the device page you can send 1 command types to the Galileosky 10 C, including: Output control.
How do I add the Galileosky 10 C to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6034 and create it in TrackeraX with its IMEI, choosing the Galileosky 10 C model.
