[ GPS device ]

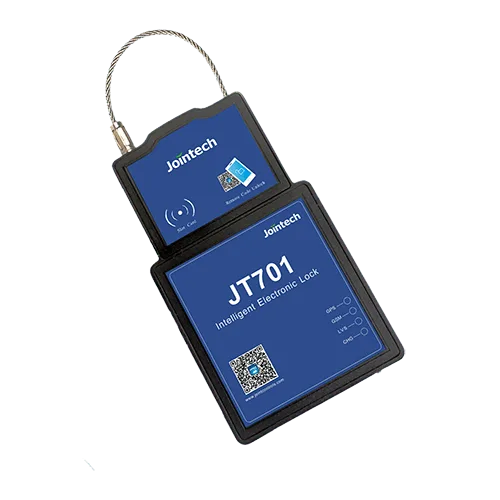

Jointech JT701D on TrackeraX

The Jointech JT701D is a GPS tracker with 4G LTE. It has an internal battery and dual SIM. It is rated IP67 against dust and water. In TrackeraX it connects over the jt600 protocol on port 6014 and accepts 5 commands from the platform.

[ How to connect it to TrackeraX ]

  1. Insert a SIM card with mobile data and set the APN of your carrier on the device.
  2. Set the server to the domain of your TrackeraX platform and the port 6014 (jt600 protocol).
  3. Create the device in TrackeraX with its IMEI or identifier and choose the Jointech JT701D model.
  4. Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

[ Hardware and connectivity ]

  • Internal battery
  • Dual SIM
  • 4G LTE
  • IP67

[ Commands you can send from TrackeraX ]

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

  • Engine stopengineStop
  • Engine resumeengineResume
  • Set time zonesetTimezone
  • Reboot devicerebootDevice
  • Custom commandcustom

[ Data reported by the jt600 protocol ]

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

  • Battery levelbatteryLevel
  • Blockedblocked
  • Chargingcharge
  • Doordoor
  • Driver ID (RFID / iButton)driverUniqueId
  • Fuelfuel
  • GPS statusgps
  • Humidityhumidity
  • Ignitionignition
  • Odometerodometer
  • External powerpower
  • GSM signalrssi
  • Satellitessat

Numbered inputs and sensors

  • Temperature sensors (temp1, temp2…)

[ Alarms the protocol can report ]

  • Fatigue drivingfatigueDriving
  • Faultfault
  • Geofence entrygeofenceEnter
  • Geofence exitgeofenceExit
  • GPS antenna cutgpsAntennaCut
  • Low batterylowBattery
  • Overspeedoverspeed
  • Power cutpowerCut
  • SOSsos
  • Towingtow
  • Vibrationvibration

[ Protocol-specific attributes ]

alertType · backCap · eventSource · fuel1 · fuel2 · fuel3 · lbs · sensorBattery · sensorBatteryLevel · sensorRssi · steelCable

[ Other Jointech models ]

[ Other devices on the jt600 protocol ]

Jointech JT701D FAQ

Which port does the Jointech JT701D use to connect to TrackeraX?

The Jointech JT701D uses the jt600 protocol and connects to port 6014 on your TrackeraX server. Just set your platform domain and that port on the device.

What data does the Jointech JT701D send to the platform?

TrackeraX reads 14 parameters of the jt600 protocol on this device, for example: Battery level, Blocked, Charging, Door, Driver ID (RFID / iButton). Each one can become a sensor or an alert.

Can I send commands to the Jointech JT701D from TrackeraX?

Yes. From the map or the device page you can send 4 command types to the Jointech JT701D, including: Engine stop, Engine resume, Set time zone, Reboot device.

Which alarms does the Jointech JT701D report?

TrackeraX recognizes these jt600 alarms: Fatigue driving, Fault, Geofence entry, Geofence exit, GPS antenna cut. Any of them can become an email, push or webhook notification.

How do I add the Jointech JT701D to my platform?

Insert a data SIM, set the APN, point the device to your platform domain on port 6014 and create it in TrackeraX with its IMEI, choosing the Jointech JT701D model.

Try the Jointech JT701D on your own platform

Open the live demo or check the plans: white label, your domain, your apps.
