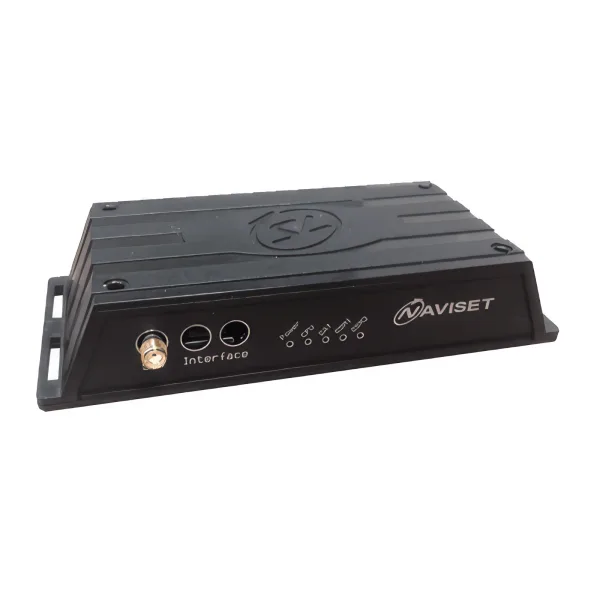

Naviset GT-10 on TrackeraX
The Naviset GT-10 is a GPS tracker. In TrackeraX it connects over the wialon protocol on port 6039 and accepts 5 commands from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6039 (wialon protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Naviset GT-10 model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Output controloutputControl
- Reboot devicerebootDevice
- Send USSDsendUssd
- Device identificationdeviceIdentification
- Custom commandcustom
[ Data reported by the wialon protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery levelbatteryLevel
- Device temperaturedeviceTemp
- Driver ID (RFID / iButton)driverUniqueId
- HDOPhdop
- Digital inputsinput
- Digital outputsoutput
- Satellitessat
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
[ Other Naviset models ]
[ Other devices on the wialon protocol ]
Naviset GT-10 FAQ
Which port does the Naviset GT-10 use to connect to TrackeraX?
The Naviset GT-10 uses the wialon protocol and connects to port 6039 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Naviset GT-10 send to the platform?
TrackeraX reads 8 parameters of the wialon protocol on this device, for example: Battery level, Device temperature, Driver ID (RFID / iButton), HDOP, Digital inputs. Each one can become a sensor or an alert.
Can I send commands to the Naviset GT-10 from TrackeraX?
Yes. From the map or the device page you can send 4 command types to the Naviset GT-10, including: Output control, Reboot device, Send USSD, Device identification.
How do I add the Naviset GT-10 to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6039 and create it in TrackeraX with its IMEI, choosing the Naviset GT-10 model.
