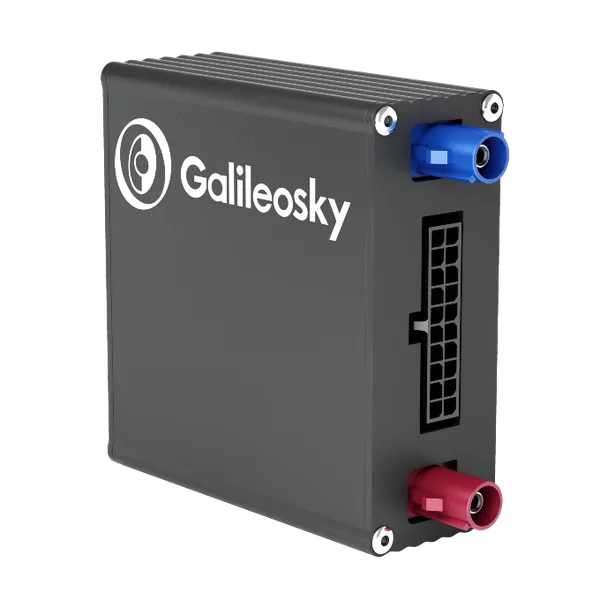

Galileosky Base Block Optimum on TrackeraX

The Galileosky Base Block Optimum is a vehicle tracker. It has an internal battery, a 1-Wire interface, CAN bus reading, an RS-232 port and an RS-485 port. In TrackeraX it connects over the galileo protocol on port 6034 and accepts 2 commands from the platform.

[ How to connect it to TrackeraX ]

  1. Insert a SIM card with mobile data and set the APN of your carrier on the device.
  2. Set the server to the domain of your TrackeraX platform and the port 6034 (galileo protocol).
  3. Create the device in TrackeraX with its IMEI or identifier and choose the Galileosky Base Block Optimum model.
  4. Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

[ Hardware and connectivity ]

  • 1-Wire
  • Internal battery
  • CAN bus
  • RS-232
  • RS-485

[ Commands you can send from TrackeraX ]

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

  • Output controloutputControl
  • Custom commandcustom

[ Data reported by the galileo protocol ]

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

  • Accelerationacceleration
  • Battery voltagebattery
  • Device temperaturedeviceTemp
  • Driver ID (RFID / iButton)driverUniqueId
  • Fuelfuel
  • HDOPhdop
  • Photoimage
  • Digital inputsinput
  • Odometerodometer
  • Digital outputsoutput
  • External powerpower
  • RPMrpm
  • Firmware versionversionFw
  • Hardware versionversionHw

Numbered inputs and sensors

  • Analog inputs (adc1, adc2…)
  • Temperature sensors (temp1, temp2…)

[ Protocol-specific attributes ]

can16BitR · can32BitR · can8BitR · canB0 · canB1 · deviceId · fuelTotal · rs2320 · rs2321 · statusExtended · userData · userDataArray

[ Other Galileosky models ]

Galileosky Base Block Optimum FAQ

Which port does the Galileosky Base Block Optimum use to connect to TrackeraX?

The Galileosky Base Block Optimum uses the galileo protocol and connects to port 6034 on your TrackeraX server. Just set your platform domain and that port on the device.

What data does the Galileosky Base Block Optimum send to the platform?

TrackeraX reads 16 parameters of the galileo protocol on this device, for example: Acceleration, Battery voltage, Device temperature, Driver ID (RFID / iButton), Fuel. Each one can become a sensor or an alert.

Can I send commands to the Galileosky Base Block Optimum from TrackeraX?

Yes. From the map or the device page you can send 1 command types to the Galileosky Base Block Optimum, including: Output control.

How do I add the Galileosky Base Block Optimum to my platform?

Insert a data SIM, set the APN, point the device to your platform domain on port 6034 and create it in TrackeraX with its IMEI, choosing the Galileosky Base Block Optimum model.
