Gosafe GAT-3000 on TrackeraX

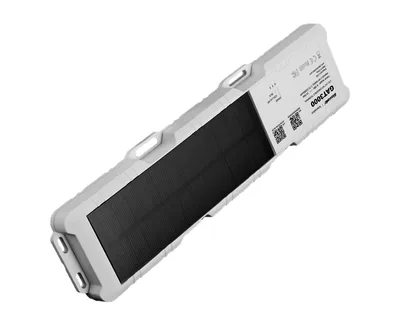

The Gosafe GAT-3000 is an asset tracker with Bluetooth and 4G LTE. It has an internal battery, a solar panel, a 1-Wire interface, CAN bus reading, an RS-232 port and an RS-485 port. It is rated IP67 against dust and water. In TrackeraX it connects over the gosafe protocol on port 6078 and accepts 1 command from the platform.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6078 (gosafe protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Gosafe GAT-3000 model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Hardware and connectivity ]
- 1-Wire
- Internal battery
- Bluetooth
- CAN bus
- 4G LTE
- RS-232
- RS-485
- Solar panel
- IP67
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Custom commandcustom
[ Data reported by the gosafe protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltagebattery
- Driver ID (RFID / iButton)driverUniqueId
- Geofencegeofence
- HDOPhdop
- Engine hourshours
- Ignitionignition
- Odometerodometer
- External powerpower
- Satellitessat
- VDOPvdop
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Inputs (in1, in2…)
- Outputs (out1, out2…)
- Temperature sensors (temp1, temp2…)
[ Protocol-specific attributes ]
eventData · eventStatus · obd · packetType · tagData
[ Other Gosafe models ]
[ Other devices on the gosafe protocol ]
Gosafe GAT-3000 FAQ
Which port does the Gosafe GAT-3000 use to connect to TrackeraX?
The Gosafe GAT-3000 uses the gosafe protocol and connects to port 6078 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Gosafe GAT-3000 send to the platform?
TrackeraX reads 14 parameters of the gosafe protocol on this device, for example: Battery voltage, Driver ID (RFID / iButton), Geofence, HDOP, Engine hours. Each one can become a sensor or an alert.
How do I add the Gosafe GAT-3000 to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6078 and create it in TrackeraX with its IMEI, choosing the Gosafe GAT-3000 model.
