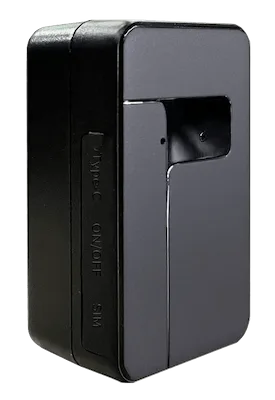

Gosafe G1A-LB on TrackeraX
The Gosafe G1A-LB is a GPS tracker that works with TrackeraX over the gosafe protocol on port 6078. From the platform it accepts custom commands.
[ How to connect it to TrackeraX ]
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6078 (gosafe protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Gosafe G1A-LB model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
[ Commands you can send from TrackeraX ]
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Custom commandcustom
[ Data reported by the gosafe protocol ]
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltagebattery
- Driver ID (RFID / iButton)driverUniqueId
- Geofencegeofence
- HDOPhdop
- Engine hourshours
- Ignitionignition
- Odometerodometer
- External powerpower
- Satellitessat
- VDOPvdop
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Inputs (in1, in2…)
- Outputs (out1, out2…)
- Temperature sensors (temp1, temp2…)
[ Protocol-specific attributes ]
eventData · eventStatus · obd · packetType · tagData
[ Other Gosafe models ]
[ Other devices on the gosafe protocol ]
Gosafe G1A-LB FAQ
Which port does the Gosafe G1A-LB use to connect to TrackeraX?
The Gosafe G1A-LB uses the gosafe protocol and connects to port 6078 on your TrackeraX server. Just set your platform domain and that port on the device.
What data does the Gosafe G1A-LB send to the platform?
TrackeraX reads 14 parameters of the gosafe protocol on this device, for example: Battery voltage, Driver ID (RFID / iButton), Geofence, HDOP, Engine hours. Each one can become a sensor or an alert.
How do I add the Gosafe G1A-LB to my platform?
Insert a data SIM, set the APN, point the device to your platform domain on port 6078 and create it in TrackeraX with its IMEI, choosing the Gosafe G1A-LB model.
